GeoPackage (GPKG) is an open and non-proprietary data format that allows different layers, both spatial and non-spatial, to be stored within the same file.
These layers can include:

• Spatial Layers with vector data such as points, lines, and polygons representing geographic features; Raster Data with gridded data representing continuous phenomena like elevation, land cover, or satellite imagery.
• Non-Spatial Layers such as tabular data: Attribute tables associated with spatial features, containing information such as attribute values, metadata, or statistical data or metadata: Descriptive information about the dataset, including authorship, data sources, coordinate reference systems, and data quality indicators.

GeoPackage’s ability to accommodate various types of spatial and non-spatial data in a single file makes it a versatile and efficient format for storing geospatial information. In this blog post, we are going to read and save geopackage’s layers using python and R.

Let’s download a simple Geopackage file. The following file comprises a GeoPackage file containing two building layers corresponding to two small cities in Italy: Grosseto and Sinalunga. First, you have to put the geopackage into your working directory. Then, you can run the code below to import the Grosseto layer and print the first rows of the dataset.

#Load the sf library
library(sf)

# Read the Grosseto layer of buildings
Grosseto = st_read("Italian_cities.gpkg", layer = "Grosseto")

# Print the first rows
head(Grosseto)

Let’s create another layer by doing a simple buffer over the buildings of Grosseto. The st_buffer function from the sf package allows doing buffer quickly. In addition, the code belows perform a buffer of 10 meters around the buildings of Grosseto. Then, the newly created layer is saved as an additional layer into the original geopackage using the st_write function.

# Perform a buffer of 10 meters
Grosseto_10B <- st_buffer(Grosseto, 10)

# Save the newly created layer
st_write(Grosseto_10B, "Italian_cities.gpkg", layer = "Grosseto_10B")

If you are new to Python, you can refer to this post to set up your Python environment with Anaconda and the Jupyter Notebook for spatial analysis. We will work with the same Geopackage file than for the R application. First, place the Geopackage in the same directory as your notebook. You can now run the code below to import a layer in Python using the GeoPandas library. In this example, we are importing a layer of building related to the italian city of Grosseto. In order to check that the layer has been imported, you can print the first rows using the .head function.

import geopandas as gpd
Grosseto = gpd.read_file("Italian_cities.gpkg", layer = "Grosseto")
Grosseto.head()

You can use the ‘to_file‘ method provided by GeoPandas to save a new layer in the GeoPackage. For example, the code below reproject the geometries in a projected CRS, perform a buffer of 10 meters and save a new layer named « buffered_Grosseto » in the GeoPackage « Italian_cities ».

# Re-project geometries to a projected CRS
Grosseto = Grosseto.to_crs(epsg=6875)

# Create a buffer of 10 meters around the geometries
buffered_Grosseto = Grosseto.buffer(10)

# Save the buffered layer to the GeoPackage file
buffered_Grosseto.to_file("Italian_cities.gpkg", driver="GPKG", layer="buffered_Grosseto")

I hope you enjoyed this short tutorial about how to work with the geopackage format in Python and R. Don’t hesitate to comment and provide feedbacks by engaging with this post.

CSR, or Complete Spatial Randomness, is a theoretical model used in spatial statistics to describe a random distribution of points in space. Essentially, in a CSR process, points are distributed randomly across the study area, with no clustering or spatial patterns. Each point is independent of the others and has an equal chance of occurring at any location within the study area.

When comparing observed spatial patterns to CSR, it is important to note that if the observed pattern exhibits a mean nearest neighbor distance that is significantly smaller than the mean nearest neighbor distance of a random distribution (CSR), it suggests clustering. In other words, this means that points in the observed pattern are closer to each other on average than would be expected under a random process. Conversely, if the mean nearest neighbor distance of the observed pattern is significantly larger than that of a random distribution, it suggests dispersion. Consequently, this indicates that points in the observed pattern are farther apart on average than would be expected under a random process.

Calculating Nearest Neighbor Distance (NND) and comparing it with CSR can be useful in various fields where spatial patterns play a crucial role, such as ecology (distribution of species) or urban planning. Let’s see together how to calculate a nearest neighbor distance from a given point pattern and compare it to a random distribution (CSR).

To perform this analysis, we will use two building layers. You can obtain OSM building data from various locations worldwide using the Overpass Turbo tool. The sample data used in this demonstration consists of two OSM building layers compiled into a Geopackage file.

This sample data pertains specifically to the Italian cities of Grosseto and Sinalunga, each containing approximately 7500 buildings.

import geopandas as gpd
import numpy as np
from scipy.spatial.distance import cdist
import matplotlib.pyplot as plt

# Read the layers for the two Italian cities
gdf_1 = gpd.read_file("Italian_cities.gpkg", layer = "Grosseto")
gdf_1 = gdf_1.to_crs(epsg=6875)
gdf_2 = gpd.read_file("Italian_cities.gpkg", layer = "Sinalunga")
gdf_2 = gdf_2.to_crs(epsg=6875)

The provided code imports necessary libraries and extracts each layer from the GeoPackage. For detailed guidance on configuring your Python environment and managing libraries, you can consult this post. Additionally, if you seek information on GeoPackage usage and layer importation into Python, you can refer to this post.

# Create a figure with two subplots
fig, axs = plt.subplots(1, 2, figsize=(20, 10))

# Plot gdf_1 in the first subplot
gdf_1.plot(ax=axs[0], color='blue', edgecolor='black')
axs[0].set_title("Map View of Grosseto")
axs[0].set_xlabel("Longitude")
axs[0].set_ylabel("Latitude")

# Plot gdf_2 in the second subplot
gdf_2.plot(ax=axs[1], color='red', edgecolor='black')
axs[1].set_title("Map View of Sinalunga")
axs[1].set_xlabel("Longitude")
axs[1].set_ylabel("Latitude")

# Adjust layout
plt.tight_layout()

# Display the plot
plt.show()

This code snippet creates a figure with two subplots. Specifically, in the first subplot, the map view of Grosseto is plotted, while Sinalunga is shown in the second plot. At first glance, buildings in both maps look clustered. However, it is difficult to visually assess which pattern is more clustered or dispersed than the other.

# Calculate the centroids of gdf_1
gdf_1_points = gdf_1.centroid
points_geom = gpd.GeoDataFrame(geometry=gdf_1_points)
# Extract coordinates from the centroids
coordinates = np.array([[points.coords[0][0], points.coords[0][1]] for points in points_geom.geometry])

# Calculate the bounding box of the GeoDataFrame
min_x, min_y, max_x, max_y = gdf_1.total_bounds
np.random.seed(123)  # Set seed for reproducibility

# Generate random points within the bounding box
random_points_x = np.random.uniform(min_x, max_x, 1000)
random_points_y = np.random.uniform(min_y, max_y, 1000)
# Create a GeoDataFrame from the random points
random_points_geom = gpd.GeoDataFrame(geometry=gpd.points_from_xy(random_points_x, random_points_y))

# Extract coordinates of the random points
coordinates_random = np.array([[point.x, point.y] for point in random_points_geom.geometry])

# Plot the random points
ax = random_points_geom.plot(markersize=1)
ax.set_title('Random Points Plot')
plt.show()

# Function to calculate nearest neighbor distances
def nearest_neighbor_distances(points):
    # Calculate pairwise distances between points
    distances = cdist(points, points)
    np.fill_diagonal(distances, np.inf)  # Exclude distance to itself
    # Calculate nearest neighbor distances
    nearest_distances = np.min(distances, axis=1)
    return nearest_distances

# SD on the nearest neighbor distances
def nearest_neighbor_sd(points):
    # Calculate nearest neighbor distances
    nearest_distances = nearest_neighbor_distances(points)
    # Calculate standard deviation of nearest neighbor distances
    sd = np.std(nearest_distances)
    return sd

The nearest_neighbor_distances function calculates the nearest neighbor distances for a given set of points in a two-dimensional space. Specifically, it computes the pairwise distances between all points using the cdist function from SciPy’s spatial module. After that, by filling the diagonal of the distance matrix with infinity, it excludes distances to the points themselves. Consequently, it finds the minimum distance for each point, representing its nearest neighbor distance. Finally, the function returns an array containing the nearest neighbor distance for each point. This array is then used by the nearest_neighbor_sd function, which computes the standard deviation of nearest neighbor distances for a set of points.

mean_observed_nn = np.mean(nearest_neighbor_distances(coordinates))
mean_random_nn = np.mean(nearest_neighbor_distances(coordinates_random))
std_random_nn = nearest_neighbor_sd(coordinates_random)

# Calculate threshold of within CSR (-1/2 +1/2 sd)
lower_bound = mean_random_nn - 0.5 * std_random_nn
upper_bound = mean_random_nn + 0.5 * std_random_nn

# Assess clustering or dispersion
if mean_observed_nn < lower_bound:
    print(f"The observed point pattern (mean: ) is significantly clustered compared to the random pattern (mean: ).")
elif mean_observed_nn > upper_bound:
    print(f"The observed point pattern (mean: ) is significantly dispersed compared to the random pattern (mean: ).")
else:
    print(f"The observed point pattern (mean: ) is consistent with CSR (mean random: ).")

The observed point pattern (mean: 24.73) is significantly clustered compared to the random pattern (mean: 47.95).

The code calculates the mean nearest neighbor distances for both an observed set of coordinates and a randomly generated set. Additionally, it computes the standard deviation (sd) of the nearest neighbor distances for the randomly generated set. These values are then used to establish thresholds for Complete Spatial Randomness (CSR). To detect clustered and dispersed patterns, lower and upper bounds are set using statistical principles: approximately 68% of data points fall within one standard deviation of the mean in a normal distribution. Hence, these bounds are established using half the standard deviation away from the mean of the random distances.

It is then possible to assess whether the observed point pattern exhibits clustering, dispersion, or adherence to CSR. If the mean nearest neighbor distance of the observed pattern falls below the lower bound, it indicates significant clustering compared to the random pattern. Conversely, if it exceeds the upper bound, it suggests significant dispersion. Otherwise, if the mean observed distance lies within the bounds, the point pattern is deemed consistent with CSR. The buildings of the city of Grosseto exhibit a significantly clustered pattern as compared to a random pattern. But how another city like Sinalunga compares to Grosseto?

# Calculate the centroids of the GeoDataFrame
gdf_2_points = gdf_2.centroid
# Create a GeoDataFrame from the centroids
points_geom2 = gpd.GeoDataFrame(geometry=gdf_2_points)
# Extract coordinates from the centroids
coordinates2 = np.array([[points.coords[0][0], points.coords[0][1]] for points in points_geom2.geometry])
mean_observed_nn2 = np.mean(nearest_neighbor_distances(coordinates2))
# Compare mean nearest neighbor distances
if mean_observed_nn2 < mean_observed_nn:
    print("The values for the second city are more clustered.")
    print(f"Mean nearest neighbor distance for observed points in the first city: ")
    print(f"Mean nearest neighbor distance for observed points in the second city: ")
else:
    print("The values for the second city are more dispersed.")
    print(f"Mean nearest neighbor distance for observed points in the first city: ")
    print(f"Mean nearest neighbor distance for observed points in the second city: ")

The values for the second city are more clustered.
Mean nearest neighbor distance for observed points in the first city: 24.73
Mean nearest neighbor distance for observed points in the second city: 19.96

The code compares the mean nearest neighbor distances between the first city and the second city. If the mean distance for the second city is less than that of the first city, indicating greater clustering, a message is printed to convey this observation along with the respective mean distances for both cities. Conversely, if the mean distance for the second city is greater, suggesting more dispersion, another message is printed with the corresponding mean distances for both cities. The results suggest that the buildings of Sinalunga are more clustered than the ones in Grosseto.

# Plot histograms of nearest neighbor distances
plt.figure(figsize=(10, 6))
plt.hist(nearest_neighbor_distances(coordinates), bins=50, color='blue', alpha=0.5, label='Grosseto')
plt.hist(nearest_neighbor_distances(coordinates2), bins=50, color='green', alpha=0.5, label='Sinalunga')
plt.hist(nearest_neighbor_distances(coordinates_random), bins=50, color='red', alpha=0.5, label='Random CSR')
plt.xlabel('Nearest Neighbor Distance')
plt.ylabel('Frequency')
plt.title('Nearest Neighbor Distance Distribution')
plt.legend()
plt.show()

• Point Pattern Analysis – Geographic Data Science
• Yuan, Y., Qiang, Y., Bin Asad, K., and Chow, T. E. (2020). Point Pattern Analysis. The Geographic Information Science & Technology Body of Knowledge (1st Quarter 2020 Edition), John P. Wilson (ed.). DOI: 10.22224/gistbok/2020.1.13.
• Usui, H and Perez, J. (2020) « Are patterns of vacant lots random? Evidence from empirical spatiotemporal analysis in Chiba prefecture, east of Tokyo », Environment and Planning B: Urban Analytics and City Science, 49(3). Read more

In this guide you’ll find clear instructions on setting up Python with Anaconda for spatial analysis. Then, we’ll cover installing Python alongside Anaconda and adding essential dependencies like GeoPandas via the Anaconda Prompt. Lastly, we’ll explore using the Jupyter Notebook for practical application. By the end, you’ll be ready to start your journey in Python-based spatial analysis, AI, and machine learning.

Anaconda is a powerful tool for managing Python environments. Indeed, Anaconda simplifies package management through its integrated package manager, conda. In addition, it comes bundled with a set of pre-installed libraries commonly used in data science and spatial analysis, such as NumPy, Pandas or Matplotlib. Therefore, this eliminates the need for manual installation and ensures immediate access to these libraries. Anaconda is also cross-platform compatible (available for Windows, macOS, and Linux) thus providing consistent Python environments across different operating systems. Furthermore, it seamlessly integrates with popular development environments like Jupyter Notebook, known amongst other things for its user-friendly interface. Visit the Anaconda website and download the Anaconda distribution related to your operating system (Windows, macOS, or Linux). Once Anaconda is installed, you’ll have access to the Anaconda Navigator, Anaconda Prompt, and other useful tools for managing Python environments.

Even if the Python distribution installed by Anaconda comes with numerous pre-installed libraries, additional dependencies will be required to enable performing advanced manipulations, and this is especially true for manipulating spatial data. So, let’s install the following three dependencies to manipulate spatial data : GeoPandas : allow spatial operations on geometric types ; Pyogrio : interoperability between spatial data formats and Contextily : retrieve tile maps from the internet.

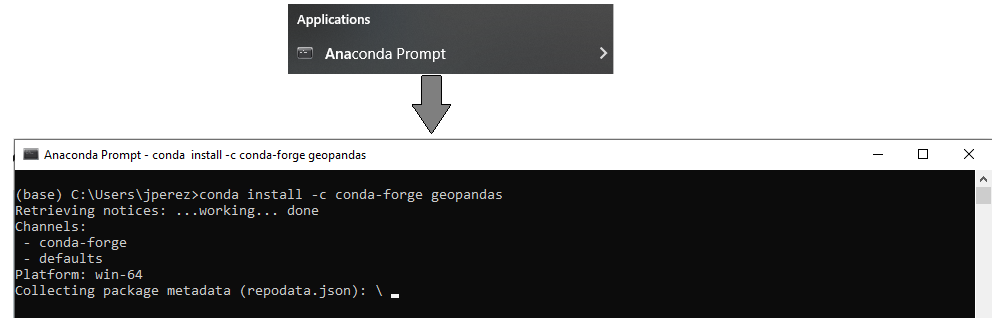

Then, on Windows, click on the Start Menu and type “Anaconda Prompt” in the search bar and open it. This will open a new command prompt window with Anaconda enabled. Within the command prompt, run the following commands one by one to install the aforementioned dependencies.

conda install -c conda-forge geopandas
conda install -c conda-forge pyogrio
conda install -c conda-forge contextily

If you’ve previously installed the libraries, executing these lines will not only update the libraries themselves but also their dependencies. Additionally, any other dependencies not encompassed within the Anaconda distribution of Python can be installed using the same commands. For instance, for machine learning purposes, you can install ‘XGBoost’ (eXtreme Gradient Boosting) using these lines as well.

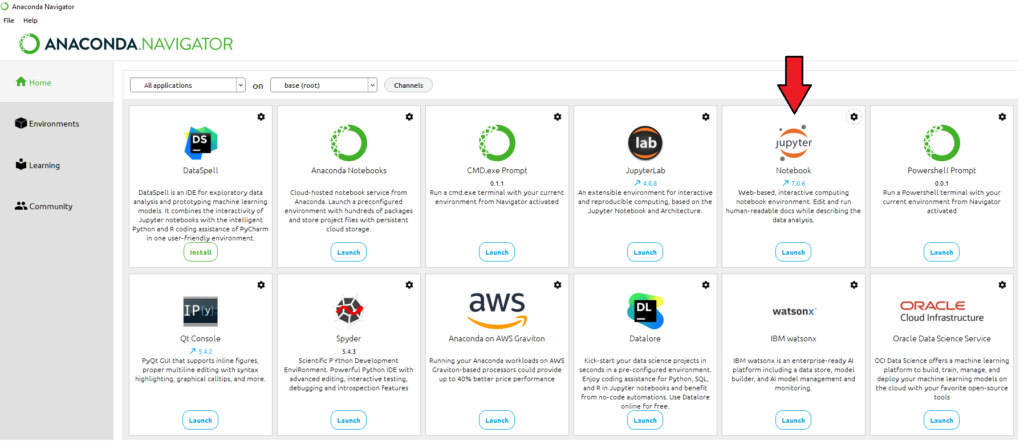

Now that you’ve installed Python and the required dependencies, you can open the Anaconda Navigator and launch the Jupyter Notebook from the Home tab, as follows:

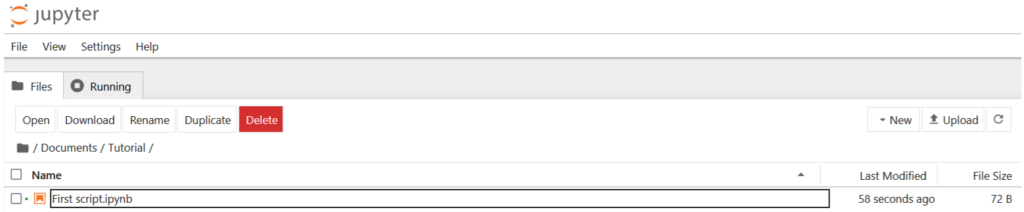

Jupyter Notebook is an open-source web application that allows users to create and share documents containing live code, visualizations, and narrative text. Upon launching the notebook, you’ll be directed to the Jupyter Notebook explorer in your default web browser, where you can create folders and new notebooks with a simple right-click action, as demonstrated below.

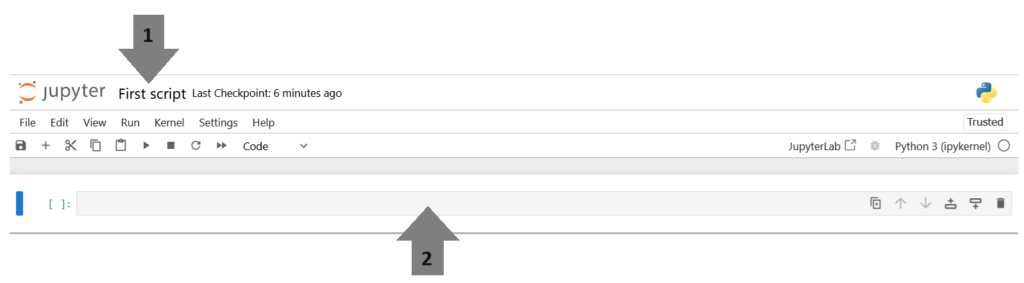

Afterward, you can rename your notebook (indicated by arrow 1 below). In a notebook, users can compose and execute code in segmented blocks. The figure below illustrates one such block (indicated by arrow 2 below).

Your notebook is automatically linked to the files within the folders where it resides. Let’s add some data to this folder and import it into the notebook (or Python environment). Begin by downloading the dataset provided below. This dataset comprises a GeoPackage file containing two building layers corresponding to two small cities in Italy: Grosseto and Sinalunga. For further insight related the GeoPackage format, you can refer to this post. Then, once you have downloaded, place it in the same directory as your notebook.

Then, you can run the code below to import a layer in Python using GeoPandas. In this example, we are importing a layer of building related to the italian city of Grosseto.

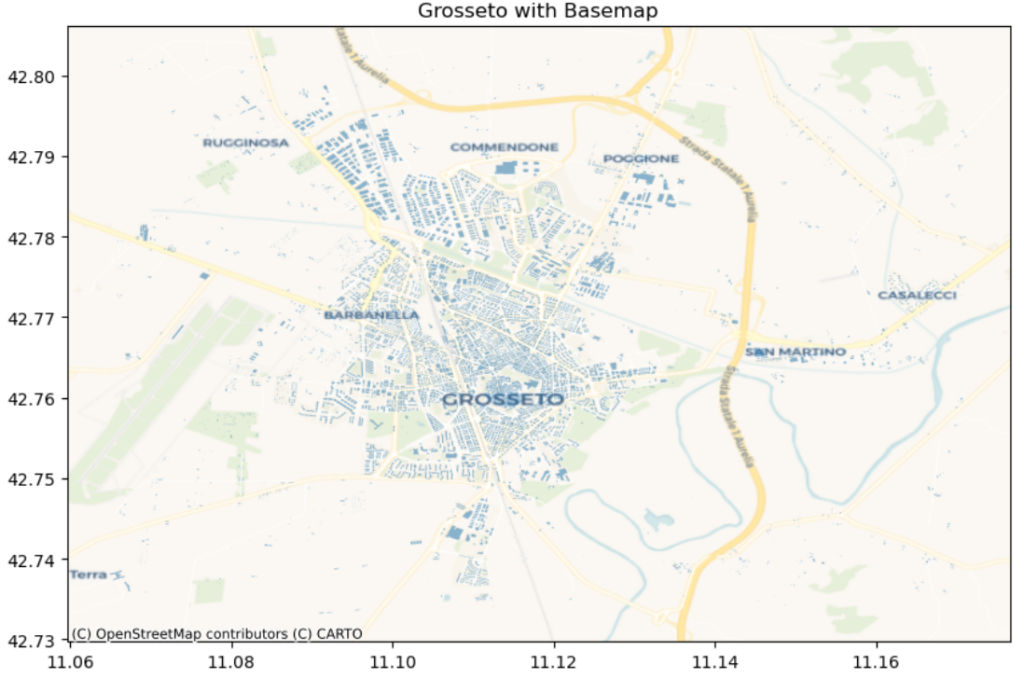

Finally, you can run the code below to plot the building layer with a basemap from OSM using contextily.

The map above was generated using the Python code provided — demonstrating how to overlay geospatial data with a custom basemap using contextily. Fell free to provide feedbacks on our blog posts by contacting us.
